IV bottle filling line

Describe： IV bottle filling line

Model： IV bottle filling line
Place of Origin：shanghai
Update time：2021-04-18
Pageviews：995

Order Contact

Product catalog/ PRODUCT MENUOpen+

More >>

Related articles/ ARTICLES

Detailed introduction

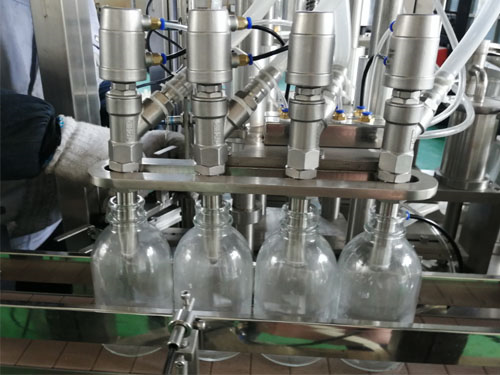

IV bottle filling line

This produciton line is consisit of bottle feeder, bottle washing machine, tunnel type sterilization drier(optional according to process requirement) linear type filling machine,rotary table positioning stoppering press capping .automatic finish water /air washing, high temperature drying,filling, stoppering capping(rolling) so one procedure,mainly use for infusion solution and other small dose liquid linkage line,and cooperate with labeling machine form a complete production line.

character

1. Suit for different bottle shapes 2. Work stable, low noise,high accuracy 3. Low bottle breaking rate,high qualified rate, small energy consumption 4. Whole line can be controlled by single machine or chained 5. Touch the material parts is stainless steel 316L 6. Meet GMP requirements

parameter

Model	HCGX-20/500
Filling volume	30-500ml custmize
loading error	≤ ±1%（base on water）
Rotation (rolling) Cover pass rate	≥99%
Output	30-50BPM 60-90BPM 90-160BPM
Filling way Auger filling Power supply	380V/50Hz or custmize
Power	Whole filling line 45 kw
Compress air demand	0.6-0.8MPa
Dimension LWH	1370015001800mm
Weigth	Totally 3000kg
Pump type	Peristaltic pump or ramp pump or Pneumatic plunger pump
Material：	Whole machine outside adopt stainless steel 304, touch liquid parts stainless steel 316
