Describe:Brief Introduction: This machine is suitable for oral syrup filling and capping, which is widely used in food, pharmaceutical and chemical industries. The machine fully complies with the GMP requirements. Characteristics: 1. PLC and touch screen control, easy to operate. 2. Adjustable speed control 3. No bottle no filling 4. SUS304 and 316L stainless steel, full complicance with GMP requirements. Technical Specifications: Model HCGX-50/100 Filling Volume 30~150ml Filling Accuracy ±1% Qualified Rate ≥99% Speed 30~50bpm 60~80bpm Power Supply 220V/50Hz Power 2KW Weight 600kg Dimension 2000*1000*1500mm

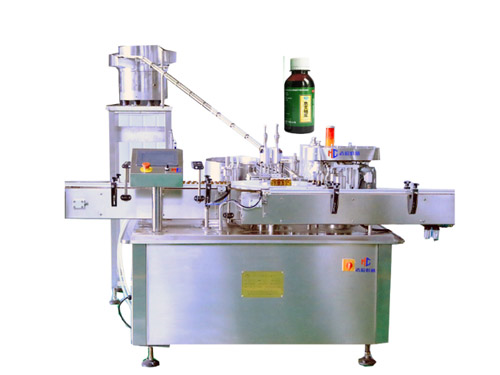

oral syrup liquid filling capping machine/syrup filling machine
This production line suit for 20-100ml metel screw cap glass mouth syrup/oral liquid washing, drying,filling,capping, consist of bottle feeder, washing machine, turnnel sterilization drier and filling capping integrate machine,can automatic finish oral liquid bottle washing, drying, filling and sealing so on procedure, its a ideal equipment for oral liquid manufacturers, production line work stable, easy operate and work stable
feature
1,HMI control, operate is intuitive and convenient,PLC control, accurate measurement.
2,Frequency conversion control,speed can adjust arbitrary , automatically count
3,Automatic stop function,no bottle no filling
4,Adopt SUS304 and 316L stainless steel, comply to GMP requirement
5,Whole line can be controlled by single machine or chained
6, Low bottle breaking rate,high qualified rate, small energy consumption
7, Suit for different bottle shapes
8, Work stable, low noise,high accuracy
9,All electrical components adopt famous brand
10,Auto-display counting function
Process: Bottle feeder-washing-drying-filling/capping-labeling-cartoning
parameter
Model |
HC-80 |
Filling volume |
20-1000ml custmize |
loading error |
≤ ±1%(base on water) |
Rotation (rolling) Cover pass rate |
≥99% |
Drying temperatuer |
100-300℃ can be adjust |
Output |
30-50BPM 60-90BPM 90-160BPM |
Water pressure and water consumption |
0.3-0.5MPa,0.5-1m³/h |
Air pressure and air consumption |
0.6-0.8MPa,10-40m³/h |
Filling way Auger filling Power supply |
380V/50Hz or custmize |
Power |
Whole filling line 30-40 kw |
Compress air demand |
0.6-0.8MPa |
Dimension L*W*H |
Filing machine 2400*1500*1800mm whole filling line 14000/15000*1500*1800mm |
Weigth |
Filling machine 800kg whole filling line depends |
Pump type |
Peristaltic pump or ramp pump or Pneumatic plunger pump |
Material: |
Whole machine outside adopt stainless steel 304, touch liquid parts stainless steel 316 |
