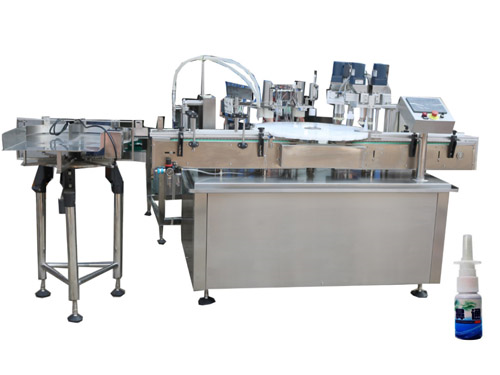

Rhinitis spray filling line

Describe:Rhinitis spray filling line

  • Model:Rhinitis spray filling line
  • Place of Origin:shanghai
  • Update time:2021-04-18
  • Pageviews:705
Product catalog/ PRODUCT MENUOpen+
More >>
Related articles/ ARTICLES
Detailed introduction

Rhinitis spray filling line



This machine on the basis of the introducing and absorbing foreign advanced technology, our independently R&D special for spray bottle filling, spray nozzle feeder,capping(rolling) machine,adopt high precision enclosed cam indexing station with high precision,reliable operation and long time. This indexer has simple structure and does not require maintenance for long-term use. This machine mainly suit for various spray bottle liquid filling, stopper press and capping(rolling), widly use in the food, pharmaceutical, chemical industry and scientific research fields



character



1,HMI control, operate is intuitive and convenient,PLC control, accurate measurement.

2,Frequency conversion control,speed can adjust arbitrary , automatically count

3,Automatic stop function,no bottle no filling

4,Adopt SUS304  and 316L stainless steel, comply to GMP requirement

5,Whole line can be controlled by single machine or chained

6, Low bottle breaking rate,high qualified rate, small energy consumption

7, Suit for different bottle shapes

8, Work stable, low noise,high accuracy



Process: bottle feeder-filling/capping-labeling-cartoning bottle feeder-filling/capping-labeling-sleeve/shrink label-cartoning-case packer bottle feeder-filling/capping



parameter



Model

 HCGX-5/50

Filling volume

5-500ml can custmize

loading error

≤ ±1%base on water

Rotation (rolling) Cover pass rate

≥99%

Output

30-50BPM 60-90BPM 90-160BPM

Filling way Auger filling Power supply

380V/50Hz or custmize

Power

Whole filling line 45 kw

Compress air demand

0.4-0.8MPa1.5m³/h

Dimension L*W*H

Filing machine2400*1500*1800mm whole filling line 5800/15000*1500*1800mm

Weigth

Filling machine 800kg whole filling line depends

Pump type

Peristaltic pump or ramp pump or Pneumatic plunger pump

Material

Whole machine outside adopt stainless steel 304, touch liquid parts stainless steel 316
