Powder Filling

Describe:Powder Filling

  • Model:Powder Filling
  • Place of Origin:shanghai china
  • Update time:2022-06-16
  • Pageviews:422
Product catalog/ PRODUCT MENUOpen+
More >>
Related articles/ ARTICLES
Detailed introduction

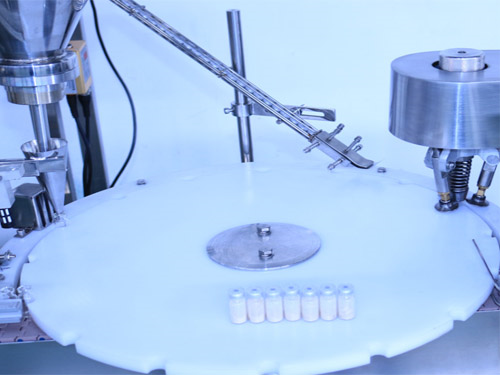

Powder Filling



This machine is suitable for a variety of small doses of powder, filling & capping such as penicillin powder, collagen powder, pesticides industries and scientific research, full compliance with the GMP requirements Process: Bottle unscrambler(plastic bottle)/bottle feeder(glass bottle)-filling/capping-labeling Bottle unscrambler(plastic bottle)/bottle feeder(glass bottle)-filling/capping-aluminum foil sealing-labeling



feature

1,HMI control, operate is intuitive and convenient,PLC control, accurate measurement. 2,Frequency conversion control,speed can adjust arbitrary , automatically count 3,Automatic stop function,no bottle no filling 4,Adopt SUS304  and 316L stainless steel, comply to GMP requirement 5,Whole line can be controlled by single machine or chained 6, Low bottle breaking rate,high qualified rate, small energy consumption 7, Suit for different bottle shapes 8, Work stable, low noise,high accuracy





parameter



Model

 HCGX-20/50

Filling volume

1-5000g

loading error

≤ ±1%(base on flour)

Rotation (rolling) Cover pass rate

≥99%

Filling method

Screw measurement

Output

30-50BPM 60-90BPM 90-160BPM

Filling way Auger filling Power supply

380V/50Hz or custmize

Power

Filling machine 2kw whole filling line 6kw

Compress air demand

0.6-0.8MPa

Dimension L*W*H

Filing machine2400*1500*1800mm whole filling line 5800/15000*1500*1800mm

Weigth

Filling machine 800kg whole filling line depends

Pump type

Peristaltic pump or ramp pump or Pneumatic plunger pump

Material:

Whole machine outside adopt stainless steel 304, touch liquid parts stainless steel 316
