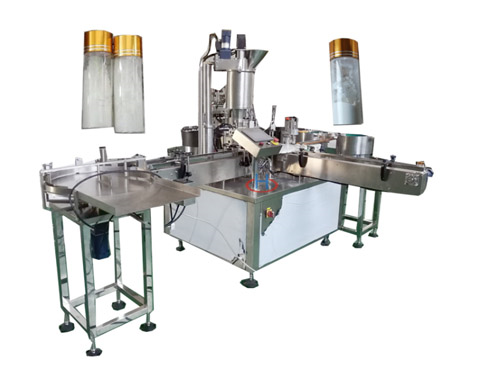

powder packing machine
This machine is suitable for a variety of small doses of powder, filling & capping such as penicillin powder, collagen powder, pesticides industries and scientific research, full compliance with the GMP requirements Process: Bottle unscrambler(plastic bottle)/bottle feeder(glass bottle)-filling/capping-labeling Bottle unscrambler(plastic bottle)/bottle feeder(glass bottle)-filling/capping-aluminum foil sealing-labeling
feature
1,HMI control, operate is intuitive and convenient,PLC control, accurate measurement. 2,Frequency conversion control,speed can adjust arbitrary , automatically count 3,Automatic stop function,no bottle no filling 4,Adopt SUS304 and 316L stainless steel, comply to GMP requirement 5,Whole line can be controlled by single machine or chained 6, Low bottle breaking rate,high qualified rate, small energy consumption 7, Suit for different bottle shapes 8, Work stable, low noise,high accuracy
parameter
Model |
HCGX-20/50 |
Filling volume |
1-5000g |
loading error |
≤ ±1%(base on flour) |
Rotation (rolling) Cover pass rate |
≥99% |
Filling method |
Screw measurement |
Output |
30-50BPM 60-90BPM 90-160BPM |
Filling way Auger filling Power supply |
380V/50Hz or custmize |
Power |
Filling machine 2kw whole filling line 6kw |
Compress air demand |
0.6-0.8MPa |
Dimension L*W*H |
Filing machine2400*1500*1800mm whole filling line 5800/15000*1500*1800mm |
Weigth |
Filling machine 800kg whole filling line depends |
Pump type |
Peristaltic pump or ramp pump or Pneumatic plunger pump |
Material: |
Whole machine outside adopt stainless steel 304, touch liquid parts stainless steel 316 |
