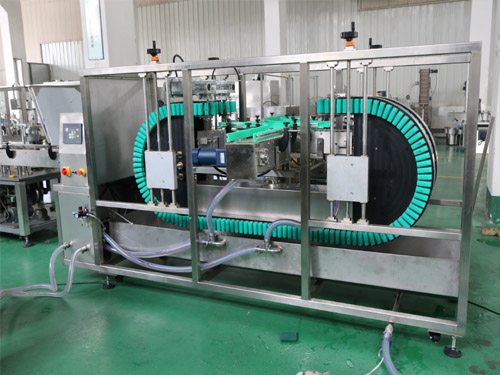

High Speed Bottle Washing Machine

High Speed Bottle Washing Machine

Work Principle

The machine consists of conveyor, gripper belt and cleaning system. The bottles are moved to gripper belt by conveyor, and the gripper belt will rotate the bottle to put the bottom of the bottle up and bring bottles to the position of cleaning system. Use the water for washing process and compressed air for blow-drying process. When the bottles are detected by sensor, the solenoid valve for compressed air input opens to blow-dry the bottles, after that, the gripper belt rotates the bottle to make the bottle up and bring the bottles to the bottle-out conveyor. The machine is utilized the solenoid valve control to save the water and compressed air. This machine has the compact structure and reliable performance. It is easy to operate and maintain.

Technical Parameters

Bottle Diameter  20~140mm

Bottle Height  60~300mm

Capacity  2500~6000bph

Power Supply  220V/50Hz

Power  1.5KW

Air Supply  0.6~0.8Mpa

Air Consumption  0.3m³/min

Dimension  3000*1600*1350mm
