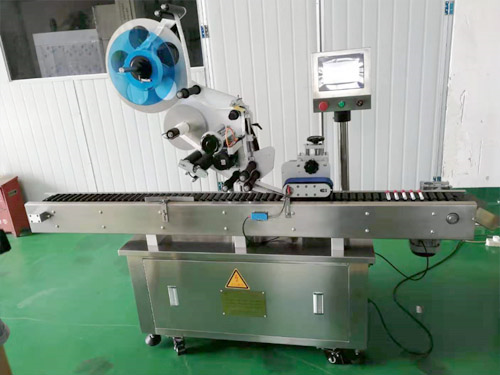

Horizontal Self-stick Labeling Machine

Brief Introduction:

Horizontal self-stick labeling machine is mainly for small diameter bottles which cannot move stably on the conveyor.This machine works stably and reliably which leads to smooth labels, clearly printed dates and batch numbers. This machine is provided with a multiple control system, which assures automatic stop at the lacking or breaking of labels as well as at the lacking of bottles. This product conforms to GMP requirements absolutely, which is widely used in pharmaceutical, foods and chemical industries.

Characteristic:

Suitable for round bottle

Screw separating system, which can guarantee the distance of bottles

Machine will slow down automatically when it is about to complete labeling a batch of bottles.

Technical Specifications:

Capacity  0~200bpm

Bottle Diameter  Φ5~Φ125mm

Labeling Accuracy  ≤±1%

Label Length  10~150mm

Label Width  10~80mm

Power Supply  0.5kw

Power  220V/50Hz

Weight  250kg

Dimension  2000*600*1600mm
