oral filling labeling machine

Describe:oral filling labeling machine

  • Model:oral filling labeling machine
  • Place of Origin:shanghai
  • Update time:2021-04-17
  • Pageviews:736
Product catalog/ PRODUCT MENUOpen+
More >>
Related articles/ ARTICLES
Detailed introduction

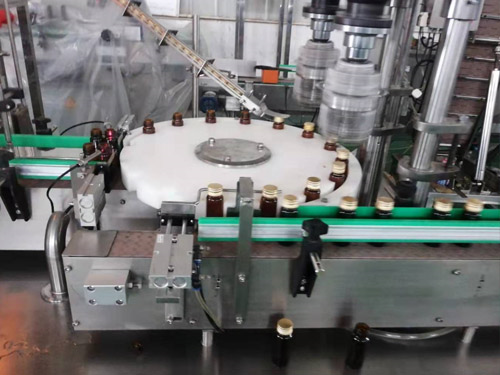

oral filling labeling machine



This production line suit for 20-100ml metel screw cap glass mouth syrup/oral liquid washing, drying,filling,capping, consist of bottle feeder, washing machine, turnnel sterilization drier and filling capping integrate machine,can automatic finish oral liquid bottle washing, drying, filling and sealing so on procedure, its a ideal equipment for oral liquid manufacturers, production line work stable, easy operate and work stable



feature



1,HMI control, operate is intuitive and convenient,PLC control, accurate measurement.

2,Frequency conversion control,speed can adjust arbitrary , automatically count

3,Automatic stop function,no bottle no filling

4,Adopt SUS304  and 316L stainless steel, comply to GMP requirement

5,Whole line can be controlled by single machine or chained

6, Low bottle breaking rate,high qualified rate, small energy consumption

7, Suit for different bottle shapes

8, Work stable, low noise,high accuracy

9,All electrical components adopt famous brand

10,Auto-display counting function

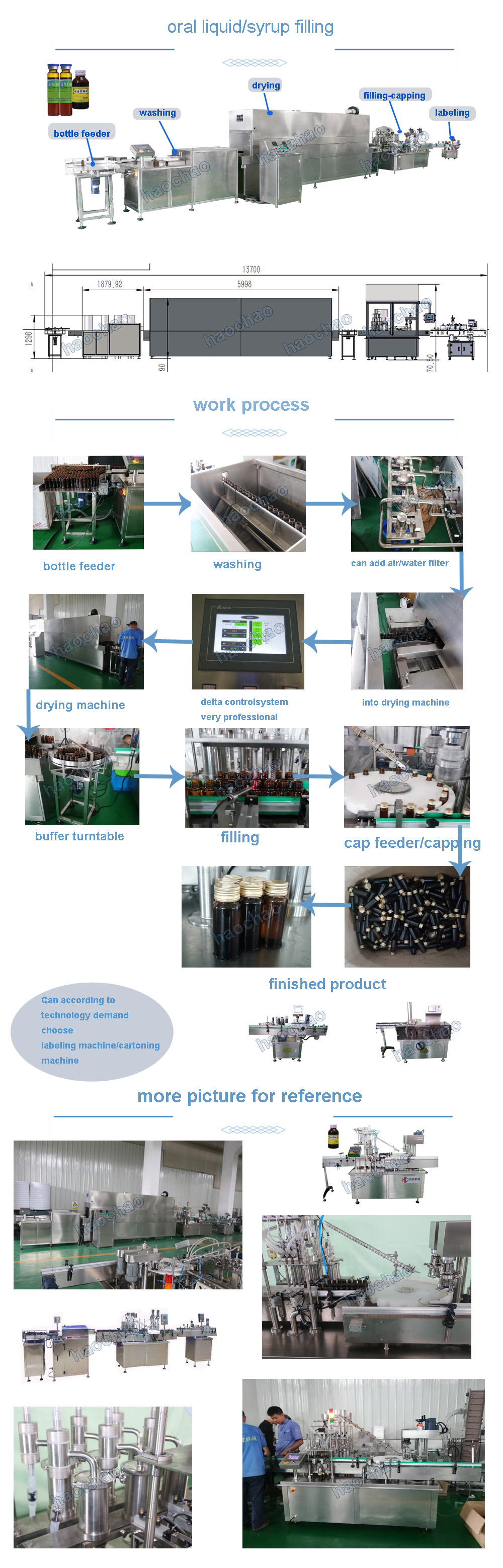

Process: Bottle feeder-washing-drying-filling/capping-labeling-cartoning



parameter



Model

 HC-80

Filling volume

20-1000ml custmize

loading error

≤ ±1%(base on water)

Rotation (rolling) Cover pass rate

≥99%

Drying temperatuer

100-300℃ can be adjust

Output

30-50BPM 60-90BPM 90-160BPM

Water pressure and water consumption

0.3-0.5MPa,0.5-1m³/h

Air pressure and air consumption

0.6-0.8MPa,10-40m³/h

Filling way Auger filling Power supply

380V/50Hz or custmize

Power

Whole filling line 30-40 kw

Compress air demand

0.6-0.8MPa

Dimension L*W*H

Filing  machine 2400*1500*1800mm whole filling line 14000/15000*1500*1800mm

Weigth

Filling machine 800kg whole filling line depends

Pump type

Peristaltic pump or ramp pump or Pneumatic plunger pump

Material:

Whole machine outside adopt stainless steel 304, touch liquid parts stainless steel 316
