glass essential oil bottles dropper filling machine

Describe:glass essential oil bottles dropper filling machine

  • Model:glass essential oil bottles dropper filling machine
  • Place of Origin:shanghai
  • Update time:2021-04-18
  • Pageviews:1054
Product catalog/ PRODUCT MENUOpen+
More >>
Related articles/ ARTICLES
Detailed introduction

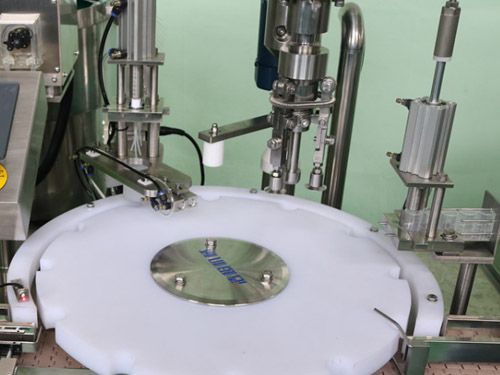

glass essential oil bottles dropper filling machine



This machine on the basis of the introducing and absorbing foreign advanced technology, our independently R&D special for dropper bottle filling, stopper feeder,capping(rolling) machine   This machine mainly suit for various small dose liquid filling,stopper press and capping(rolling), such as essential oil, injection so on product, widely use in the food pharmaceutical, chemical industry and scientific research fields.

character

1,HMI control, operate is intuitive and convenient,PLC control, accurate measurement.

2,Frequency conversion control,speed can adjust arbitrary , automatically count

3,Automatic stop function,no bottle no filling

4,Adopt SUS304  and 316L stainless steel, comply to GMP requirement

5,Whole line can be controlled by single machine or chained

6, Low bottle breaking rate,high qualified rate, small energy consumption

7, Suit for different bottle shapes

8, Work stable, low noise,high accuracy



Process: bottle feeder-filling/capping-labeling-cartoning



feature



Model

 HCGX-20/50

Filling volume

2-500ml can custmize

loading error

≤ ±1%(base on water)

Rotation (rolling) Cover pass rate

≥99%

Output

30-50BPM 60-90BPM 90-160BPM

Filling way Auger filling Power supply

380V/50Hz or custmize

Power

Whole filling line 45 kw

Compress air demand

0.6-0.8MPa

Dimension L*W*H

Filing machine2400*1500*1800mm whole filling line 5800/15000*1500*1800mm

Weigth

Filling machine 800kg whole filling line depends

Pump type

Peristaltic pump or ramp pump or Pneumatic plunger pump

Material:

Whole machine outside adopt stainless steel 304, touch liquid parts stainless steel 316
