5ml detection reagent filling machine

Describe:5ml detection reagent filling machine

  • Model:5ml detection reagent filling machine
  • Place of Origin:shanghai
  • Update time:2021-04-18
  • Pageviews:1240
Product catalog/ PRODUCT MENUOpen+
More >>
Related articles/ ARTICLES
Detailed introduction

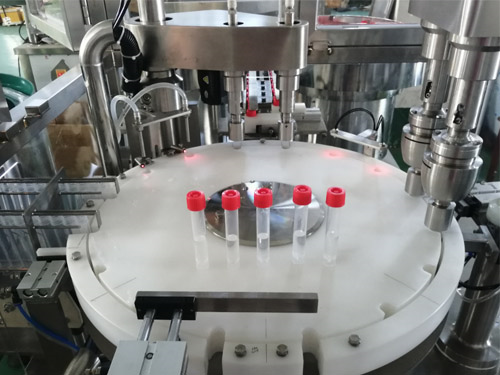

5ml detection reagent filling machine

This machine according to client sample tube non standard customize, liquid filling and capping integrate machine, mainly suit for tube unscramble, filling , cap feeder, capping, adopt vibration disc type bottle unscramble, peristaltic pump filling, electric and magnetic automatic automatic cap feeder, bottle mouth location capping,friction type or claw type capping, no bottle no filling, no bottle no capping function. This machine is filling capping integrate , design reasonable, compact structure, easy operate and maintenance, comply to GMP standard



feature

1,HMI control, operate is intuitive and convenient,PLC control, accurate measurement.

2,Frequency conversion control,speed can adjust arbitrary , automatically count

3,Automatic stop function,no bottle no filling

4,Adopt SUS304  and 316L stainless steel, comply to GMP requirement

5,Whole line can be controlled by single machine or chained

6, Low bottle breaking rate,high qualified rate, small energy consumption

7, Suit for different bottle shapes

8, Work stable, low noise,high accuracy

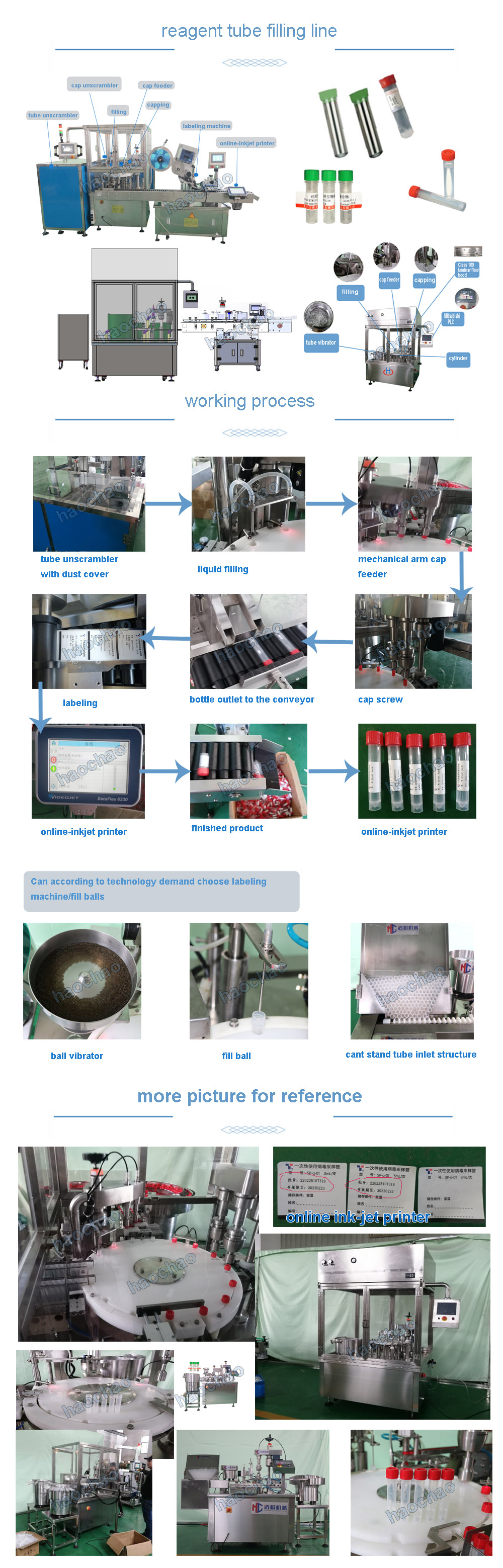

Process: Tube unscrambler-liquid filling-capping Tube unscrambler-liquid filling-ball filling-cap feeder-capping-labeling





Model

 HCSJ

Filling volume

0.001-500ml( or customize)

loading error

≤ ±1%(base on water)

Rotation (rolling) Cover pass rate

≥99%

Output

30-50BPM 60-90BPM 90-160BPM

Filling way Auger filling Power supply

380V/50Hz or custmize

Power

Whole filling line 2-5 kw

Compress air demand

0.4-0.8MPa1.5m³/h

Dimension L*W*H

Filing machine1600*1600*2200mm whole filling line 5800/15000*1500*1800mm

Weigth

Filling machine 800kg whole filling line depends

Pump type

Peristaltic pump or ramp pump or Pneumatic plunger pump

Material:

Whole machine outside adopt stainless steel 304, touch liquid parts stainless steel 316
