linear type liquid filling line

Describe:linear type liquid filling line

  • Model:
  • Place of Origin:shanghai
  • Update time:2021-04-12
  • Pageviews:748
Product catalog/ PRODUCT MENUOpen+
More >>
Related articles/ ARTICLES
Detailed introduction

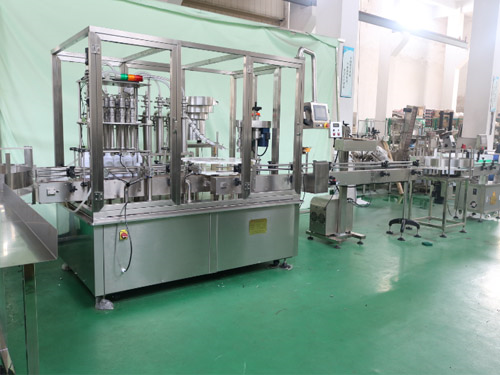

linear type liquid filling line

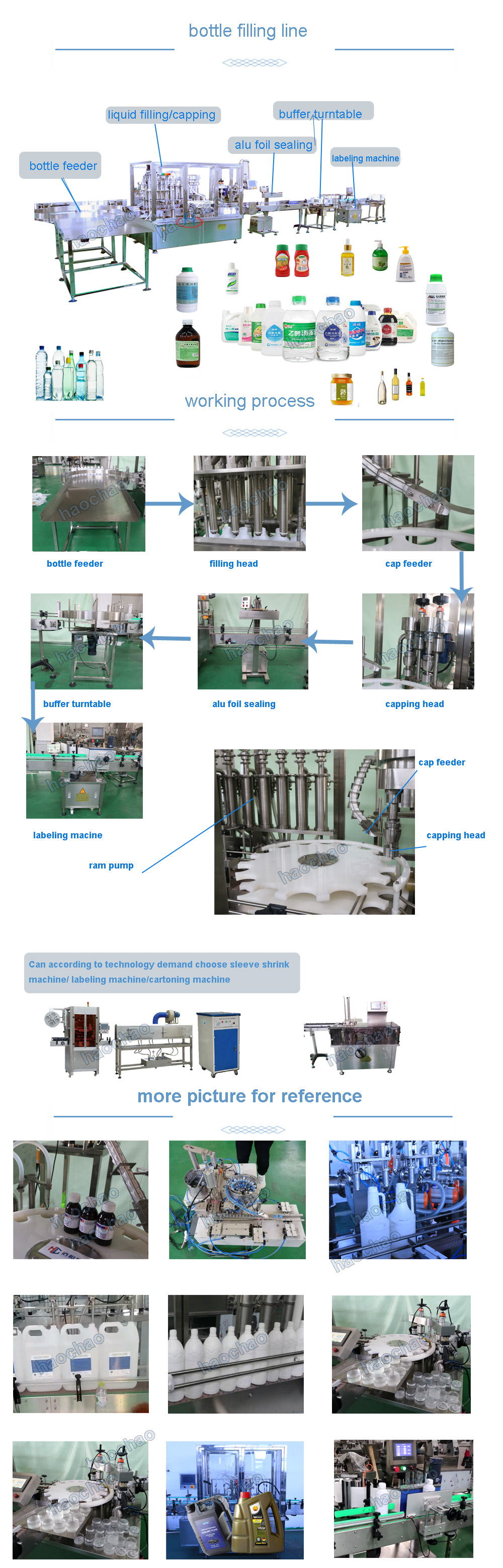

This produciton line is consisit of bottle feeder,washing,drying filing,capping,labeling, linear type filling machine,rotary table positioning stoppering press capping with high capping rate .a,mainly use for bottle filling line ,and cooperate with labeling machine form a complete production line,can use plastic bottle or glass bottle



feature

1.    Suit for different bottle shapes 2.    Work stable, low noise,high accuracy 3.    Low bottle breaking rate,high qualified rate, small energy consumption 4.    Whole line can be controlled by single machine or chained 5.    Touch the material parts is stainless steel 316L 6.    Meet GMP requirements



parameter

Model

 HCGX-20/500

Filling volume

30-500ml custmize

loading error

≤ ±1%base on water

Rotation (rolling) Cover pass rate

≥99%

Output

30-50BPM 60-90BPM 90-160BPM

Filling way Auger filling Power supply

380V/50Hz or custmize

Power

Whole filling line 45 kw

Compress air demand

0.6-0.8MPa



Dimension L*W*H

13700*1500*1800mm

Weigth

Totally 3000kg

Pump type

Peristaltic pump or ramp pump or Pneumatic plunger pump

Material

Whole machine outside adopt stainless steel 304, touch liquid parts stainless steel 316
