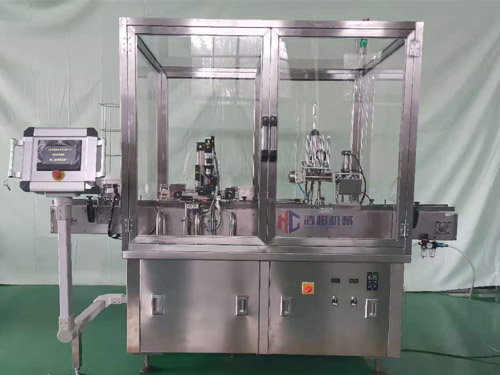

Deep-well Multiwell plate filling machine
This machine is according to client sample non standard customize product, its 96 Deep-well Multiwell Plate filling machine, adopt peristaltic pump metering filling, with touch screen, man-machine interface setting, operate intuitive and easy,PLC control ,accurate positioning to labeling, heating type sealing,make sure sealing stable, beauty. This equipment have the advantage of positioning accuracy, filling high precision,Smooth transmission , compact structure, reasonable design, simply operation, comply to GMP demand

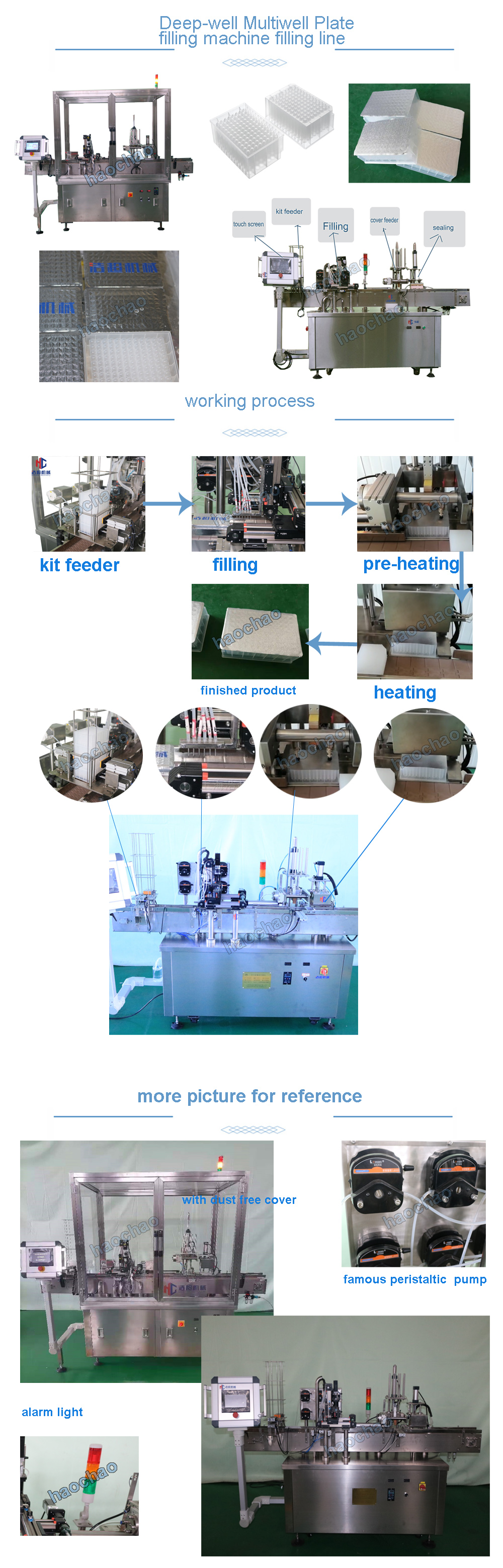

Feature: 1, all electric component adopt well known brand 2, operate intuitive and easy , no bottle not filling, high accuracy 3, sealing good and stable 4, according to GMP demand Technical parameter Process： Plate feeder-filling-alu foil sealing
parameter
|
Model: |
HCOLF-M100s |
|
Filling volume |
0.1-0.6ml |
|
Production capacity |
60B/H |
|
Filling accuracy |
≤±5% |
|
Power supply |
220V/50Hz |
|
Air supply |
1.5M3/H 0.4-0.7Mpa |
|
Power |
2KW |
|
weight |
750kg (net weight 550kg) |
|
Dimension |
2500*1200*2000mm |
|
|
|
